Firestone Air Spring Assembly W01-358-7761 Industrial Vibration Isolation Solution
Product Overview
The GUOMAT 3H7761 Flange Air Spring is engineered to provide exceptional vibration isolation, shock absorption, and load support for a wide range of industrial equipment. Designed as a direct replacement for Firestone W01-358-7761 (Style 312), this air spring assembly combines robust construction with reliable performance in demanding industrial environments.
Product Specifications
- Type: Flange Air Spring
- Brand: GUOMAT
- Model No.: 3H7761
- Warranty: 1 Year
- Material: Rubber + Steel
Construction & Performance
Manufactured from premium rubber compounds reinforced with high-strength cord fabric, the GUOMAT 3H7761 delivers excellent resistance to fatigue, abrasion, and repeated compression cycles. The heavy-duty steel flange rings ensure secure mounting and long-term structural integrity, even under continuous operation.
Unlike traditional metal springs, the GUOMAT air spring utilizes compressed air as the elastic medium, allowing the system to adapt to varying loads while maintaining superior vibration isolation performance. This helps reduce machine noise, minimize structural stress, and extend the service life of surrounding components.
Cross-Reference Part Numbers
| Firestone Style |
312 |
| Firestone |
W013587761; W01 358 7761; W01-358-7761 |
| Firestone |
WO13587761; WO1 358 7761; WO1-358-7761 |
Technical Data
| Bolt Specification |
3/8-24 UNF (American Standard Fine Thread) |
| Number of Flange Ring Bolt Holes |
18 |

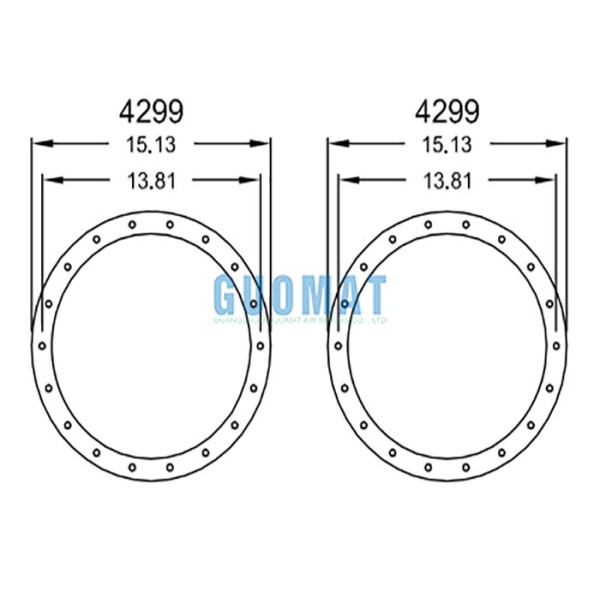

| Flange Ring Diameter |
15.13 inches / 384.3 mm |
| Center Distance Between Bolts |
13.81 inches / 350.7 mm |
| Airbag Outer Diameter |
16.00 inches / 406.4 mm |
| Included Bolt Length |
1.87 inches / 47.5 mm |
| Minimum Height |
4.3 inches / 109.2 mm |
Quality Assurance
Every GUOMAT 3H7761 air spring undergoes strict quality inspections and performance testing before shipment. Each unit is checked for air tightness, dimensional accuracy, and structural integrity to ensure reliable operation in industrial applications worldwide.
Whether used for machinery isolation, shock reduction, or pneumatic force generation, the GUOMAT 3H7761 provides a cost-effective and dependable alternative to the Firestone W01-358-7761 air spring assembly.
